AttentioLight-1
Your personal multi-use RGB light solution in an elegant enclosure.
Show your availability for others, receive status indications, or simply enjoy a variety of light effects. With a handful of modes and animated effects. Open-source hardware and firmware.
Features
Standalone Application
Works independently without external devices. Just plug in an USB-C cable and go!
7 Modes
Solid Color, Brightness, Blinking, Pulsation, Effects, Traffic Light, and Night Light
12 Vibrant Colors
Azure, Blue, Purple, Magenta, Pink, Red, Orange, Yellow, Lime, Green, Spring, Cyan
13 Animated Effects
Rainbow, Color Cycle, Breathing, Candle, Fire, Lava Lamp, Day/Night, Ocean, Northern Lights, Thunder Storm, Police, Health Pulse, Memory
Diffused Lighting

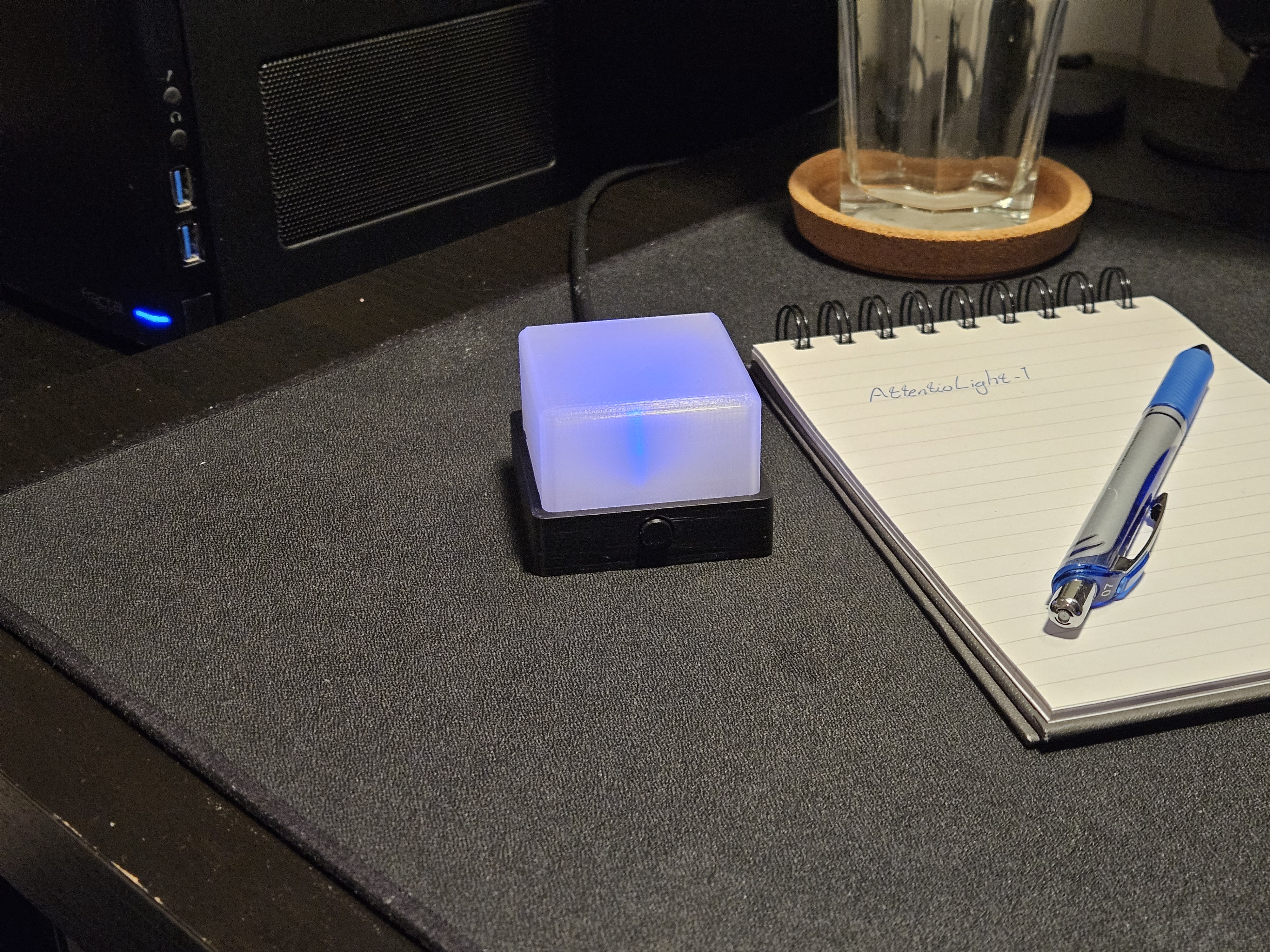

Soft and even light distribution through 3D-printed diffuser top
Enclosure Design
Modular 3D-printed enclosure with easy swapping of different diffuser top sizes
Status Indicator
Show your availability in real-life with the easy Traffic Light mode (Green/Yellow/Red)
One-Button Control
Elegant and intuitive control with a single button for all standalone functions
USB-C Powered
Power and serial communication via modern USB-C connector. Debug output available over USB serial port
USB Firmware Updates
Update firmware over USB using DFU (Device Firmware Upgrade) protocol with bootloader. No special programmer needed
Bootloader Integration
Special designed bootloader with CRC32 integrity check, version management, and seamless firmware upgrade support
Persistent Data Storage
Settings saved to internal flash with CRC32 integrity checking
Low Power Mode
Power off with low power mode, keeping previous activities intact
WiFi & BLE Ready
ESP32-C3 module onboard for future wireless connectivity and smart integrations
Open Source
Hardware (KiCad), firmware (ChibiOS), and enclosure (OnShape) designs all publicly available
How It Works
Simple one-button control for all modes and settings in Standalone operation. No app or external device needed. Just plug in an USB-C cable and go!
Button Controls
Short Press
Cycle through options in the current mode (color, speed, brightness, effects, etc.)
Long Press
Switch to next mode (white flash indicates threshold reached at 2s)
Extended Press
Power off the device (indicated with the power-down animation)
Wake Up (when OFF)
Long press to wake device from sleep (indicated with the power-up animation)
Mode Sequence
Modes cycle via long press (wraps after last mode):
LED Feedback
- White flash — Ready to switch mode
- Rainbow power-up — Power up animation
- Amber power-down — Power down animation
Mode Details
Solid Color
Display a single static color. Short press cycles through 12 available colors.
Brightness
Adjust the global brightness level. Short press cycles through brightness levels.
Blinking
Blink the current color on and off. Short press cycles through different blink speeds.
Pulsation
Smoothly fade brightness up and down. Short press cycles through different pulse speeds.
Effects
Animated lighting effects. Short press cycles through 13 different effects.
Traffic Light
Quick availability indicator. Short press cycles through green, yellow, and red.
Night Light
Warm, dim light for nighttime use. Short press adjusts the warm white intensity.
Hardware Design

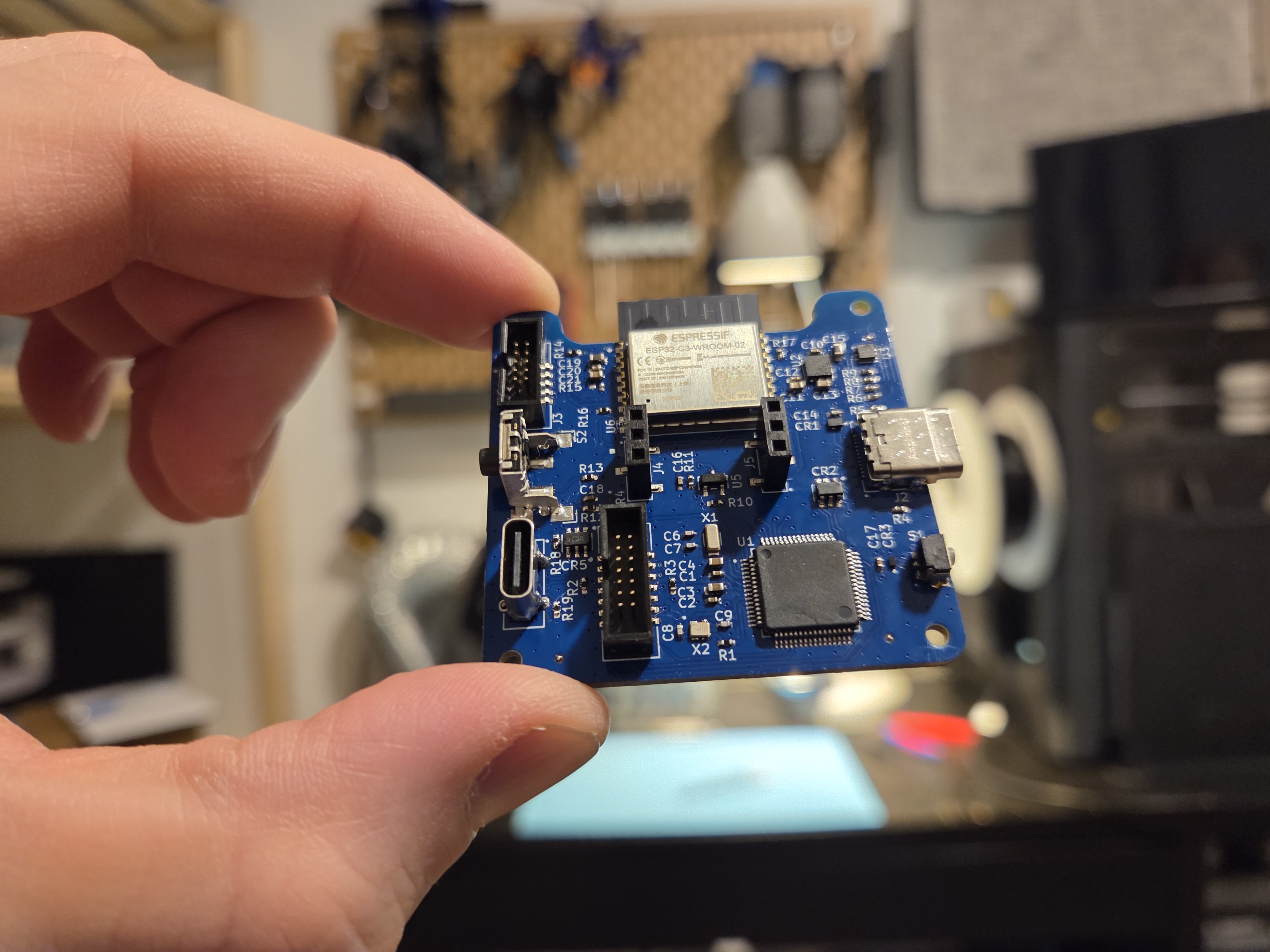

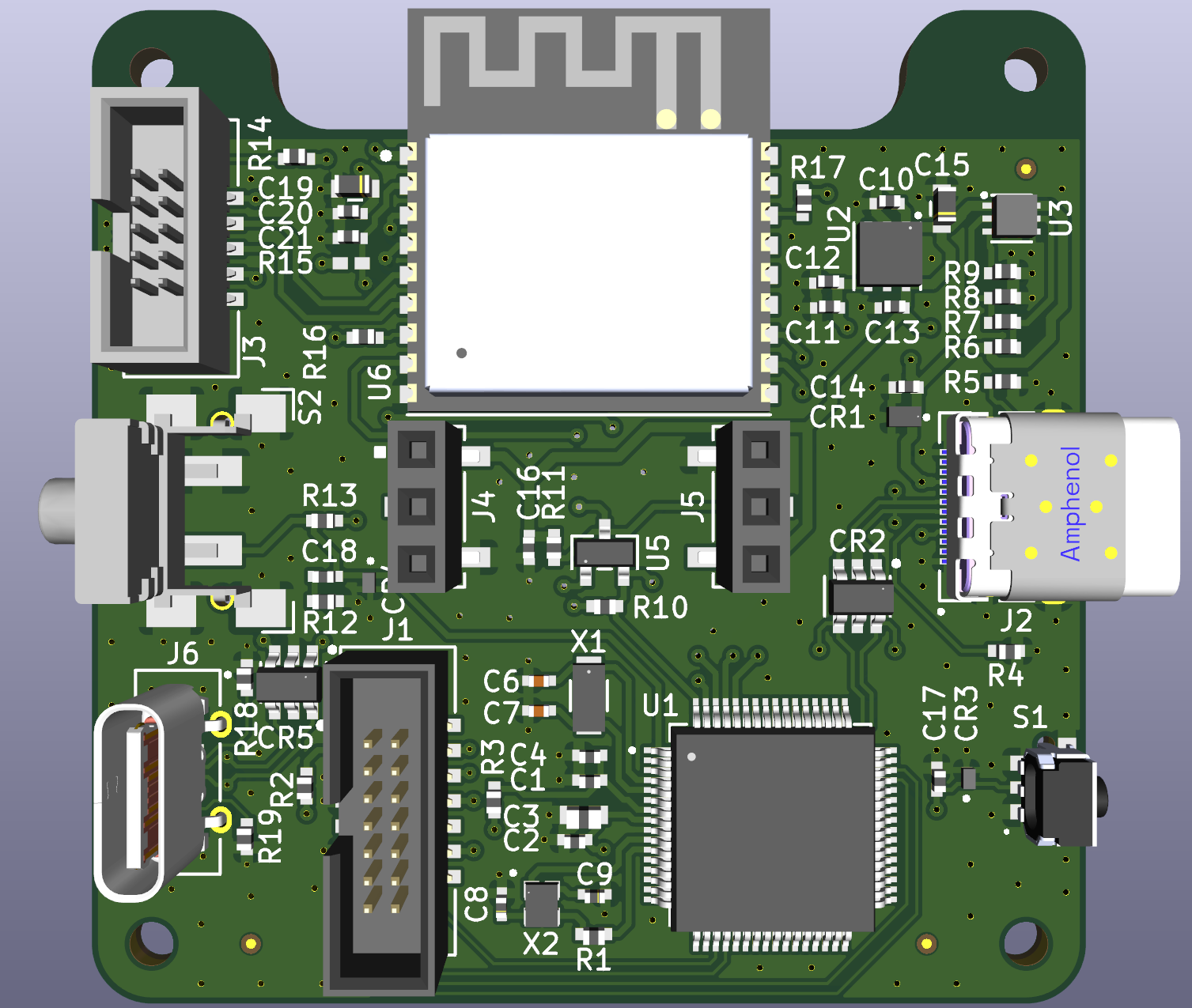

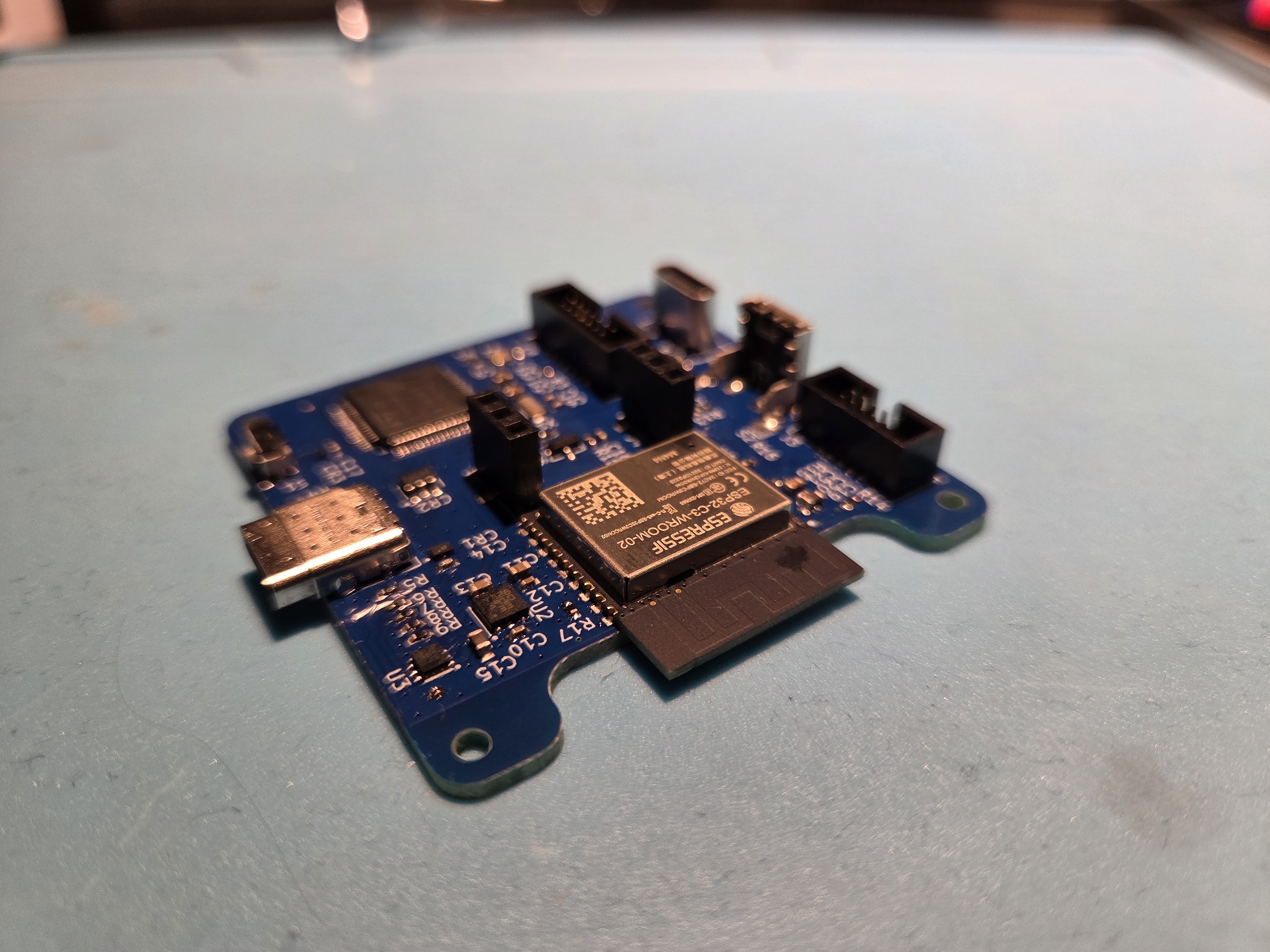

PCB designed in KiCad featuring STM32C071RB MCU and ESP32-C3 wireless module
Enclosure Design

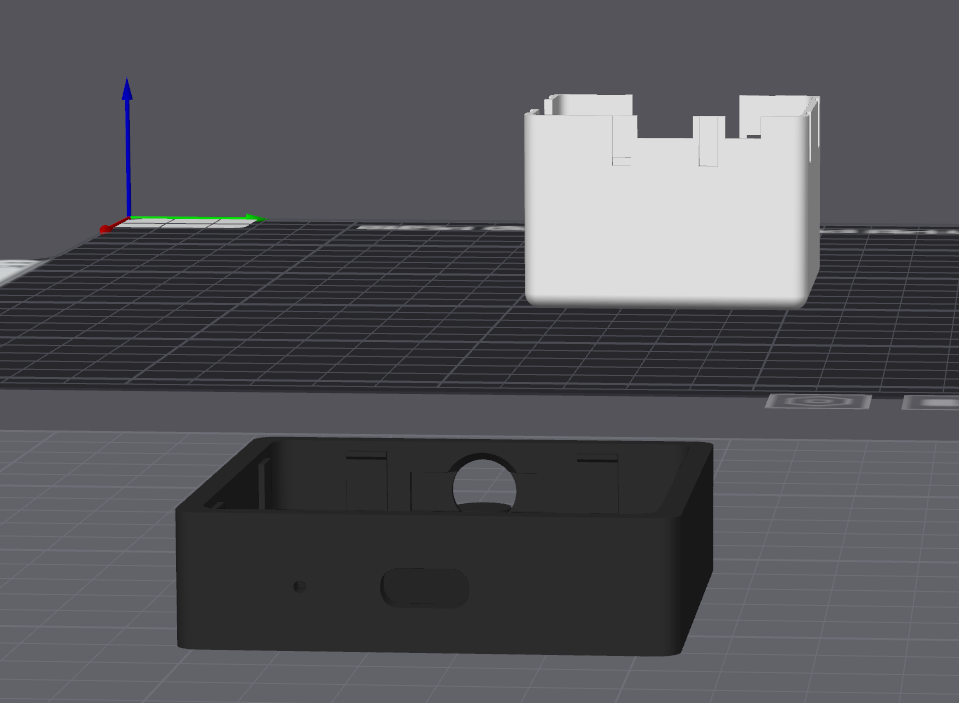

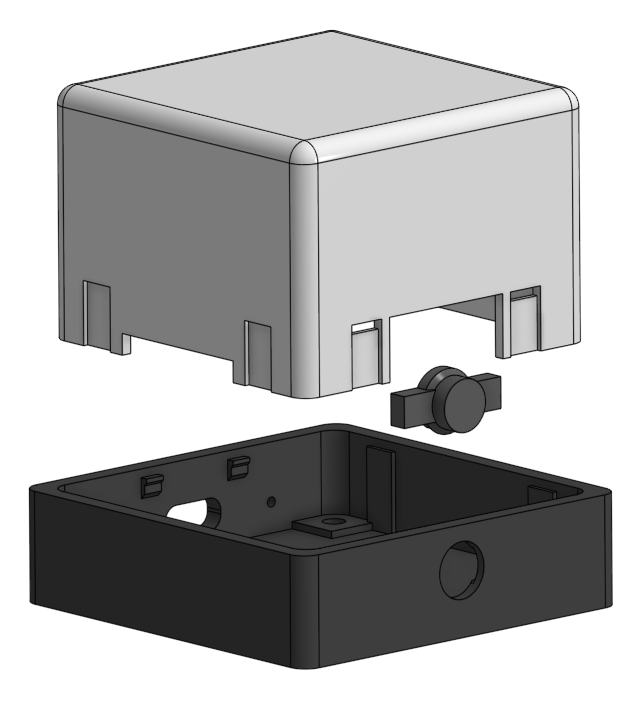

Enclosure designed with OnShape and 3D-printed in three parts: translucent diffuser top, solid base, and user button
Design Features
-
Compact Dimensions
57 x 57 x 41 mm (W x L x H), 58 mm (L) w/ button
-
Diffuser Top
Translucent top piece for soft and even light distribution
-
Base
Simplistic and elegant housing for the internal components
-
User Button
Intuitive button integrated in front of the enclosure
-
Threaded Insert Slots
For mechanical ruggedness, ensuring durable user button and USB-C connector
-
Snap-Fit Assembly
Tool-free assembly with snap-fit joints for the base and diffuser top
-
Reset Button Access
Pinhole on the back for reset button
Firmware Architecture
Real-time firmware built with ChibiOS/RT on STM32, with bootloader integration for easy firmware updates with USB DFU.
Production
Everything you need to build your own AttentioLight from PCB fabrication to final assembly

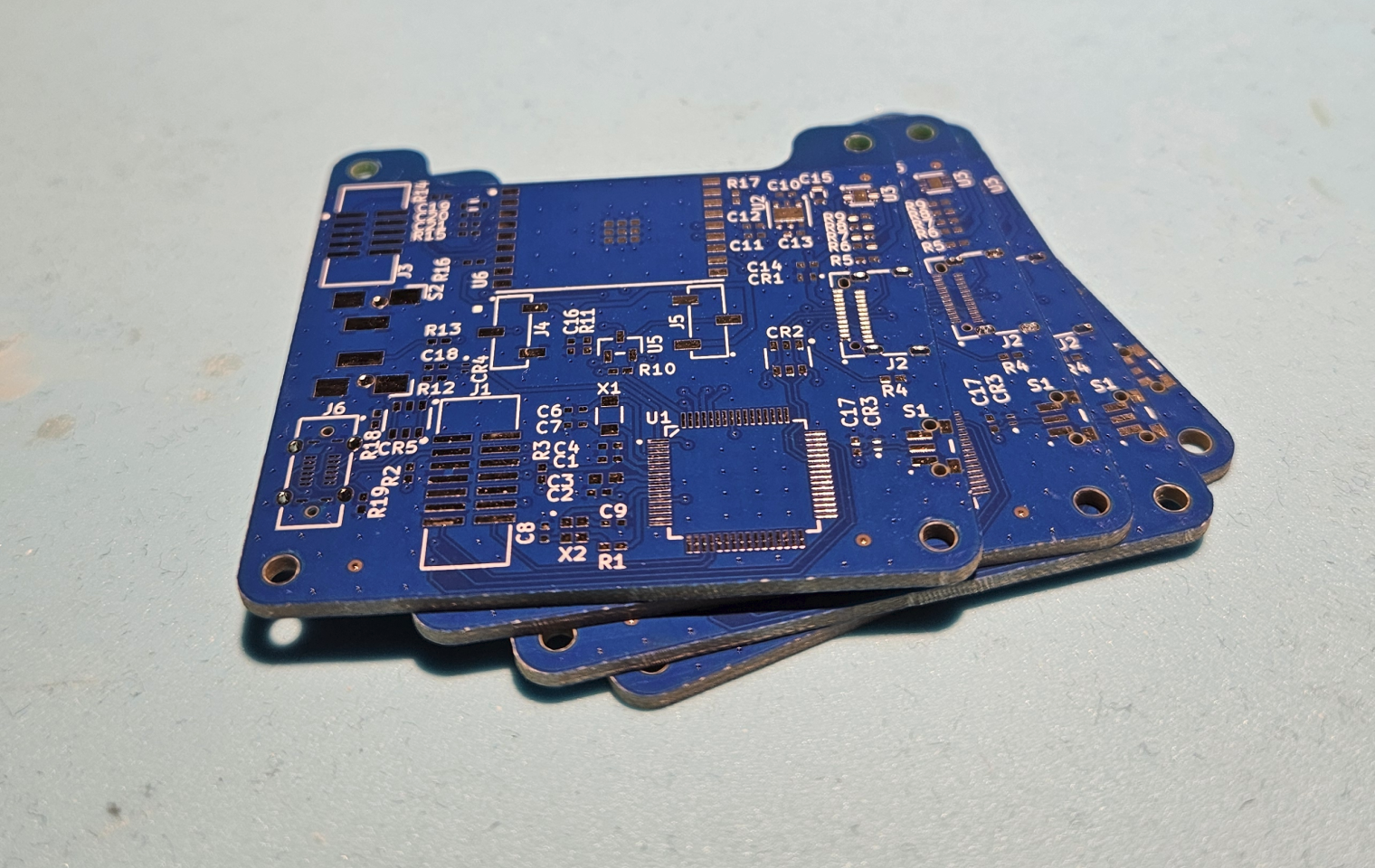

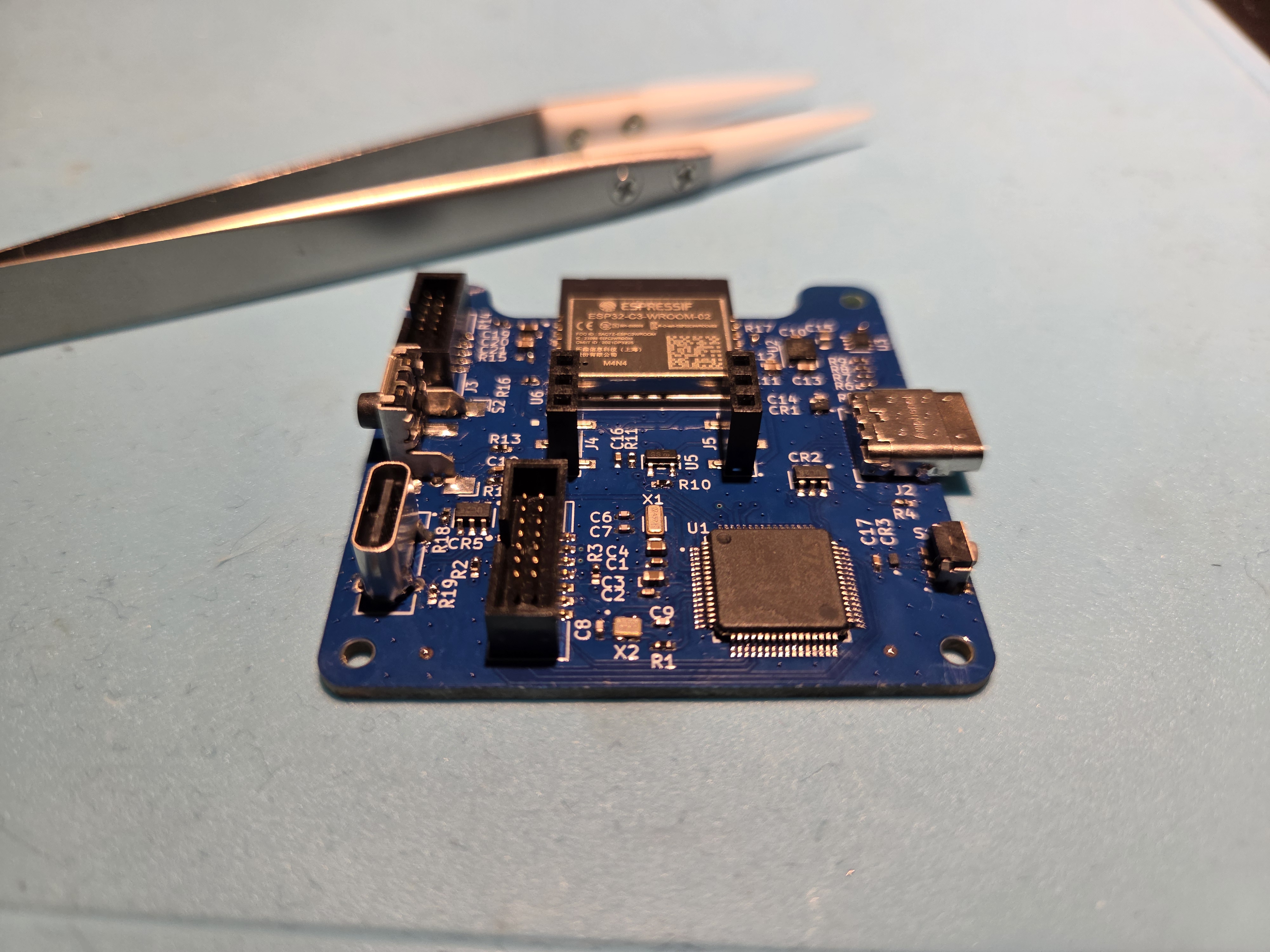

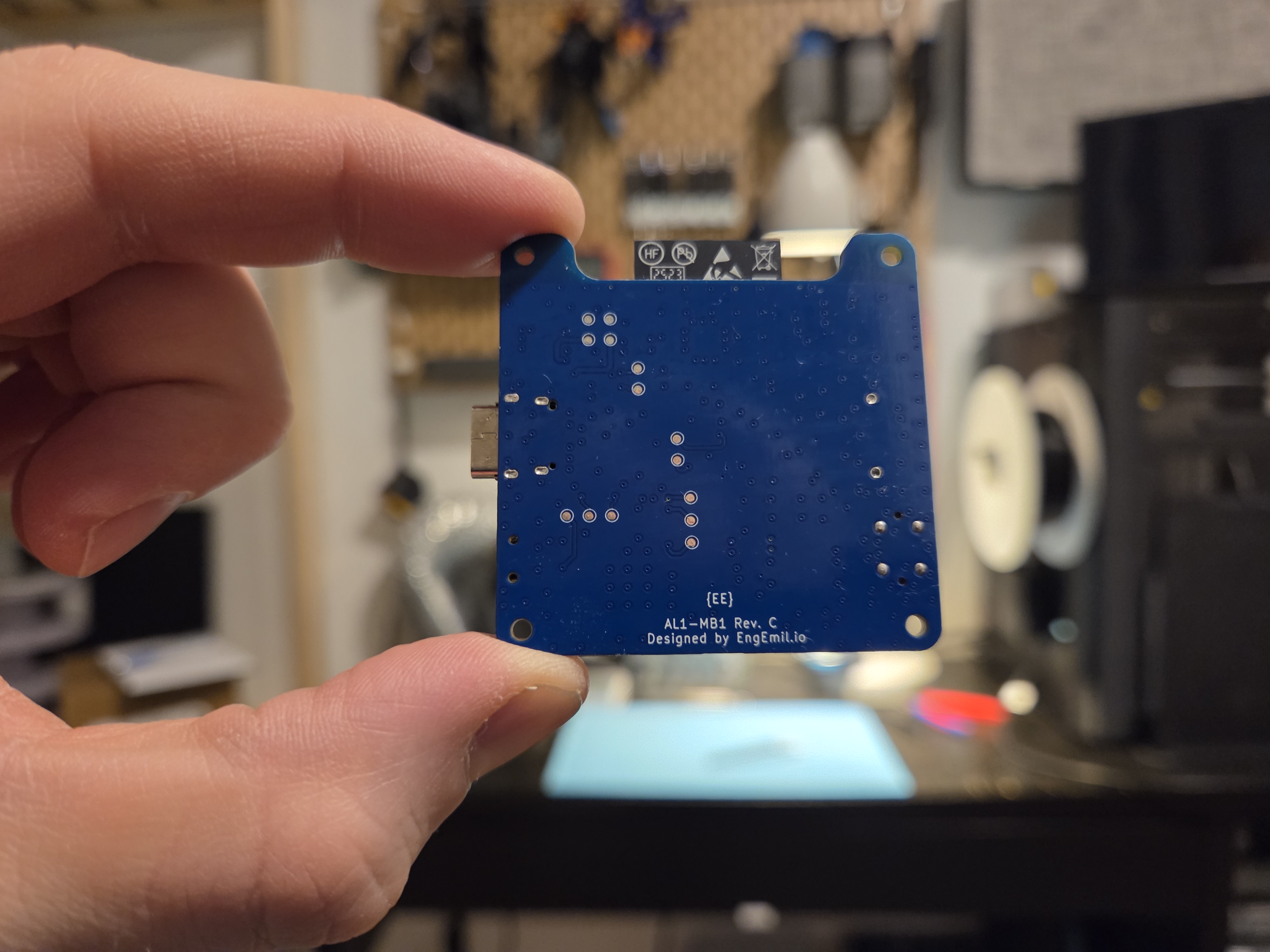

PCB Manufacturing
Designed for manual and production pick-and-place assembly
- • 50x50mm (W x L)
- • 4-layer PCB, 1.6mm thickness
- • LeadFree HASL surface finish

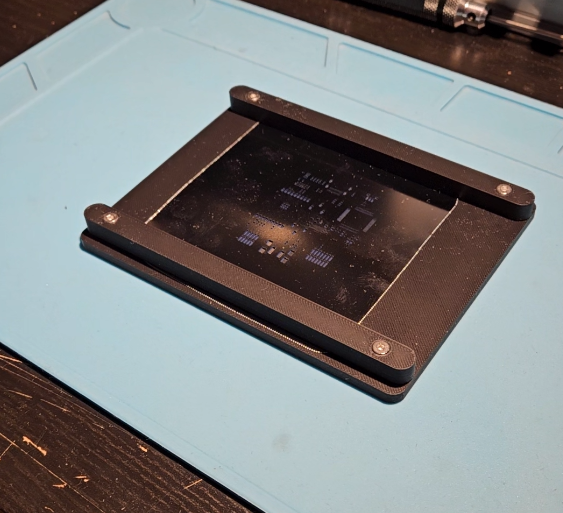

- • Solder paste applicable with stencil
- • Hotplate reflow soldering

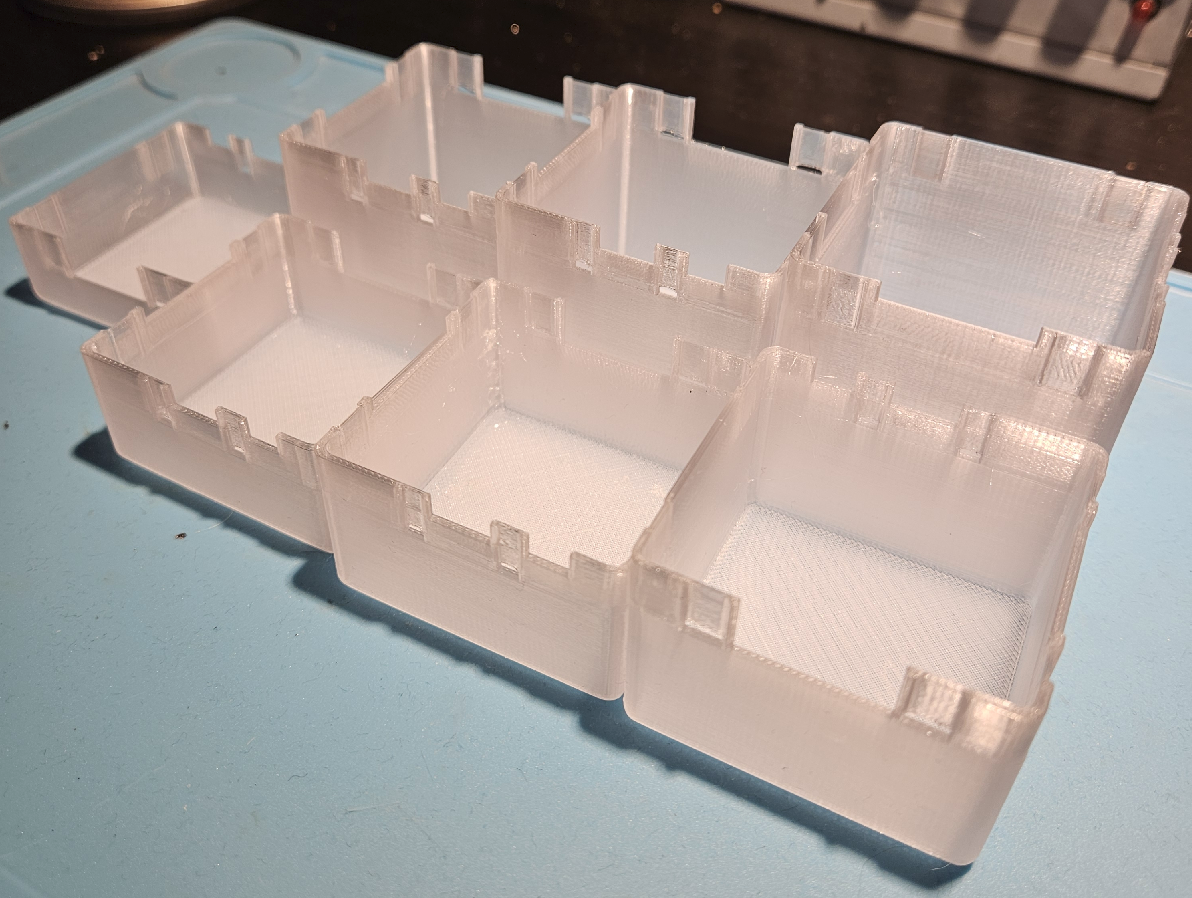

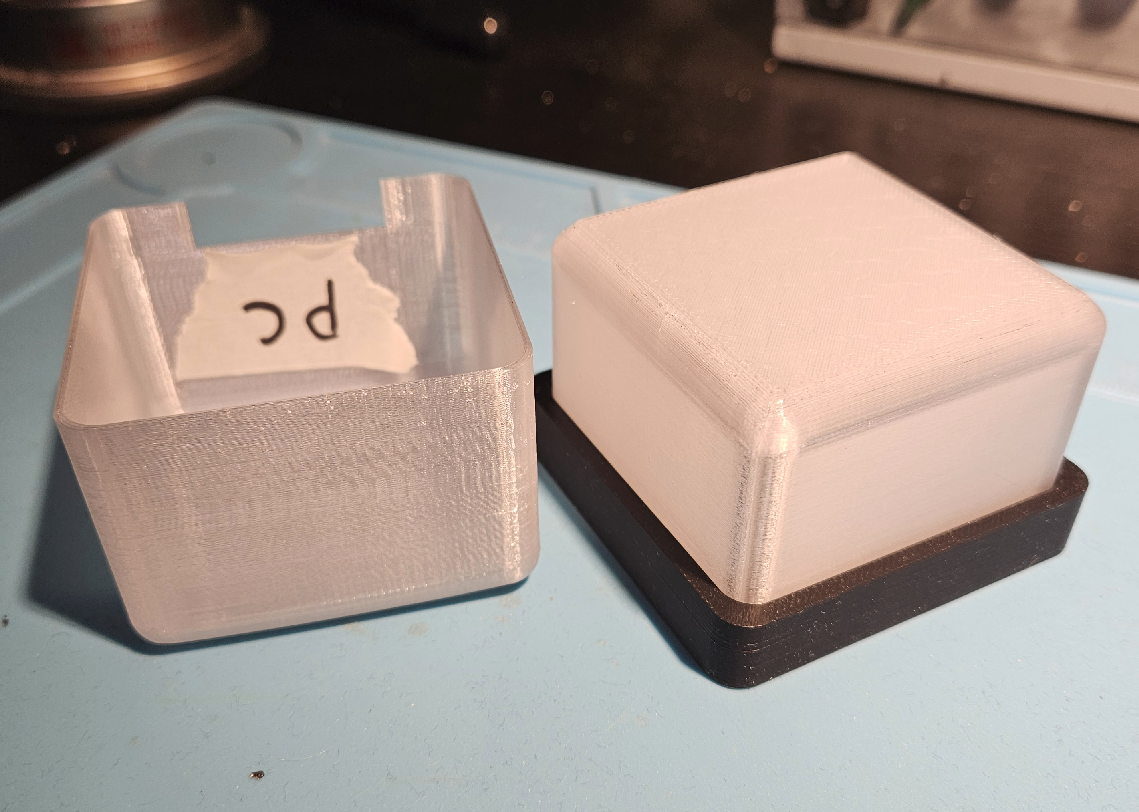

3D-Printing
Recommended print settings for the enclosure:
PETG Translucent / PC Transparent
PLA
0.4mm
0.16mm
None

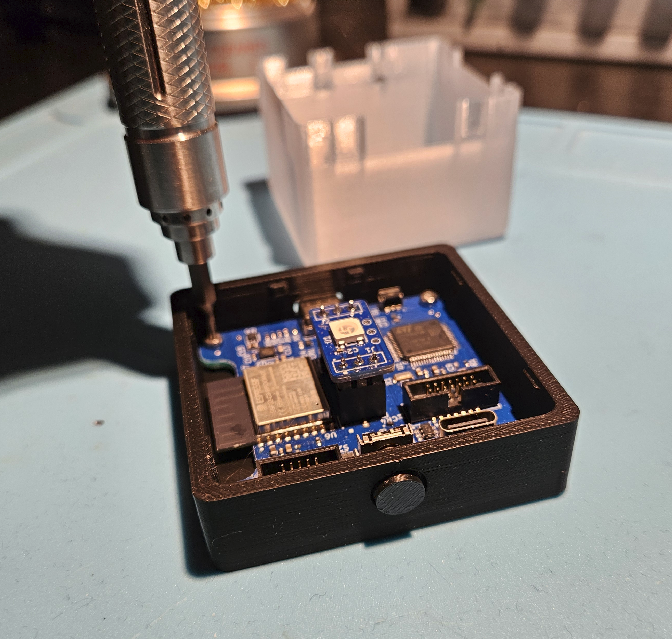

Assembly Instructions
Follow these steps to assemble your AttentioLight:

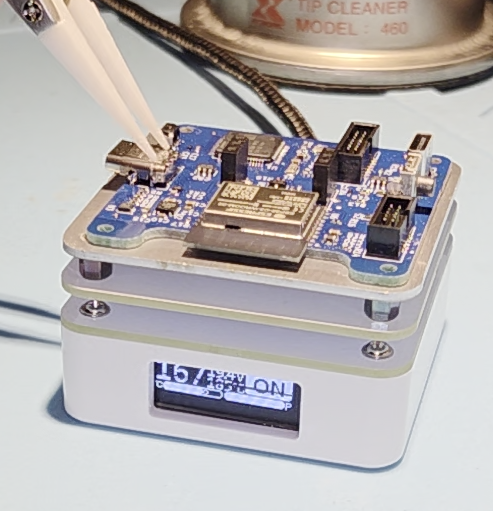

- 1 Solder SMD and through-hole components to the PCBs (or order pre-assembled)

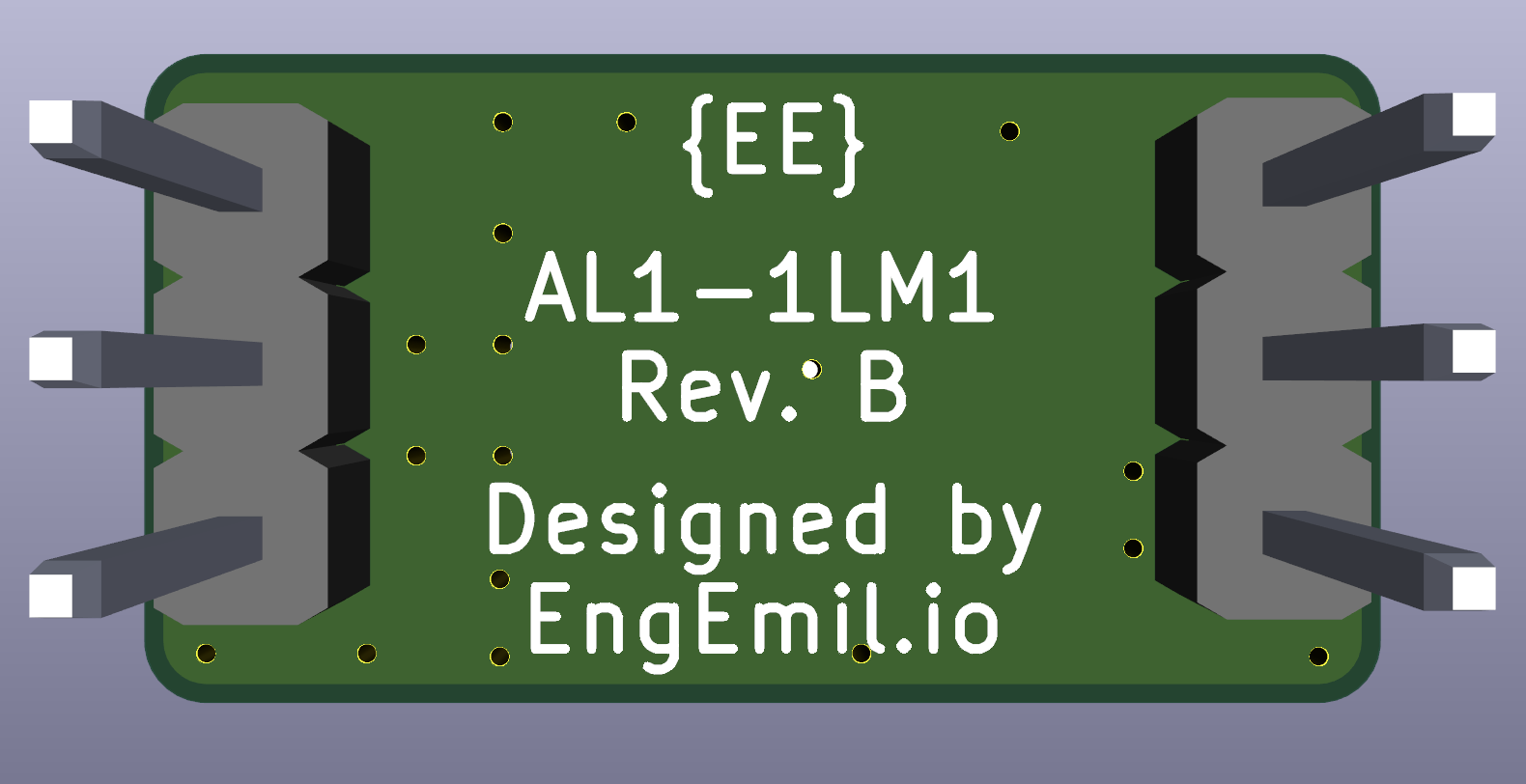

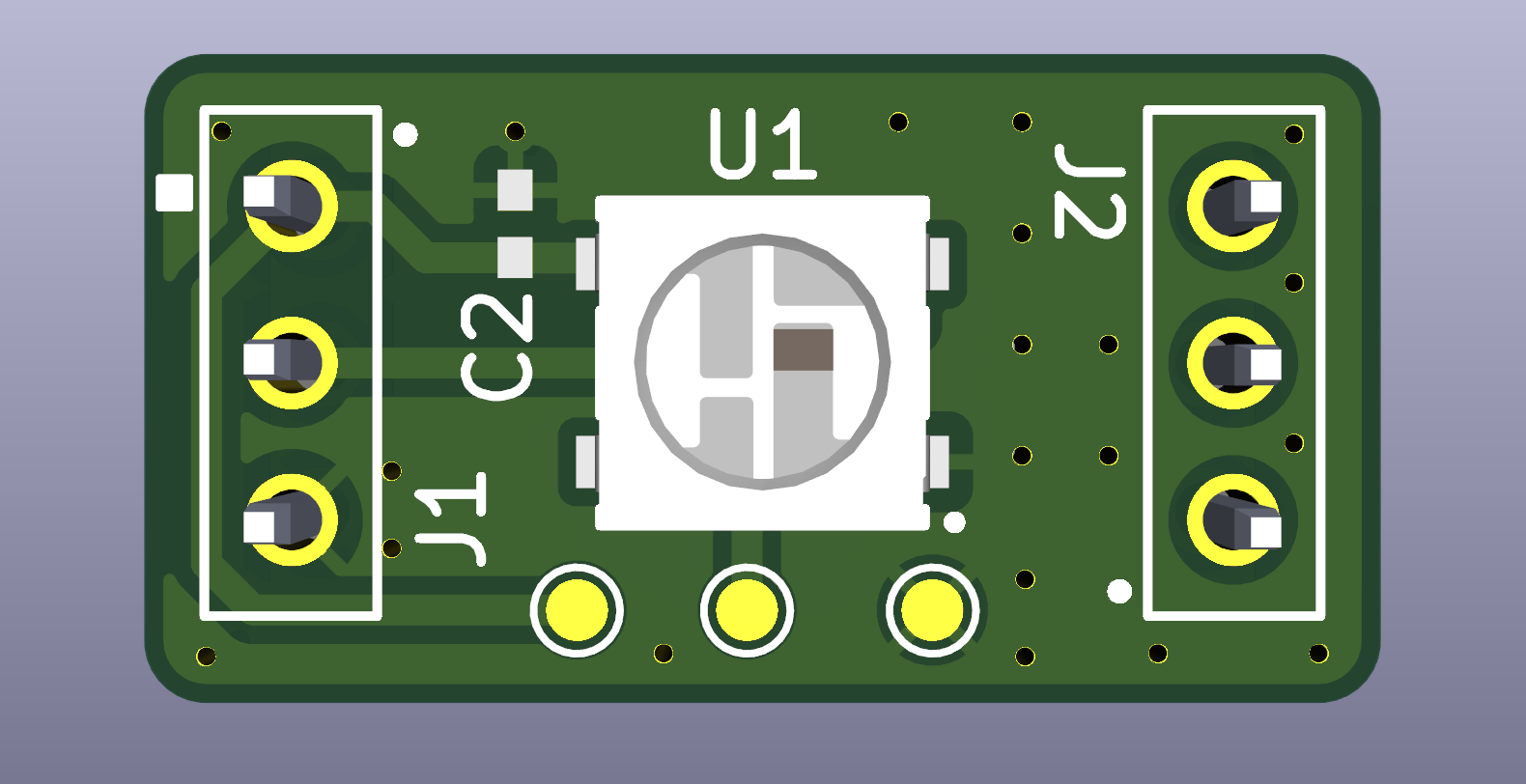

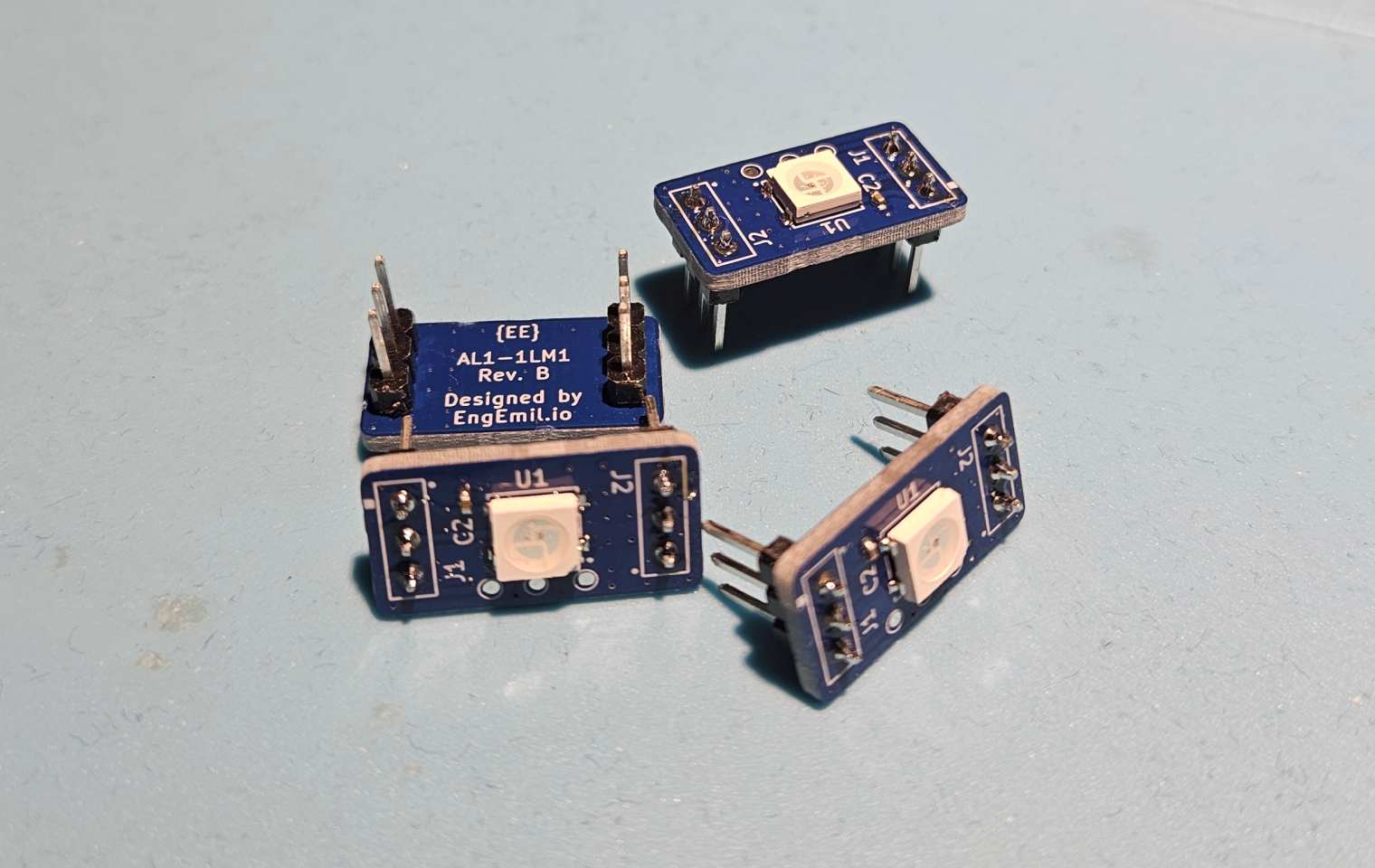

- 2 Assemble the PCBs by connecting the LED Module PCB to the Mainboard PCB

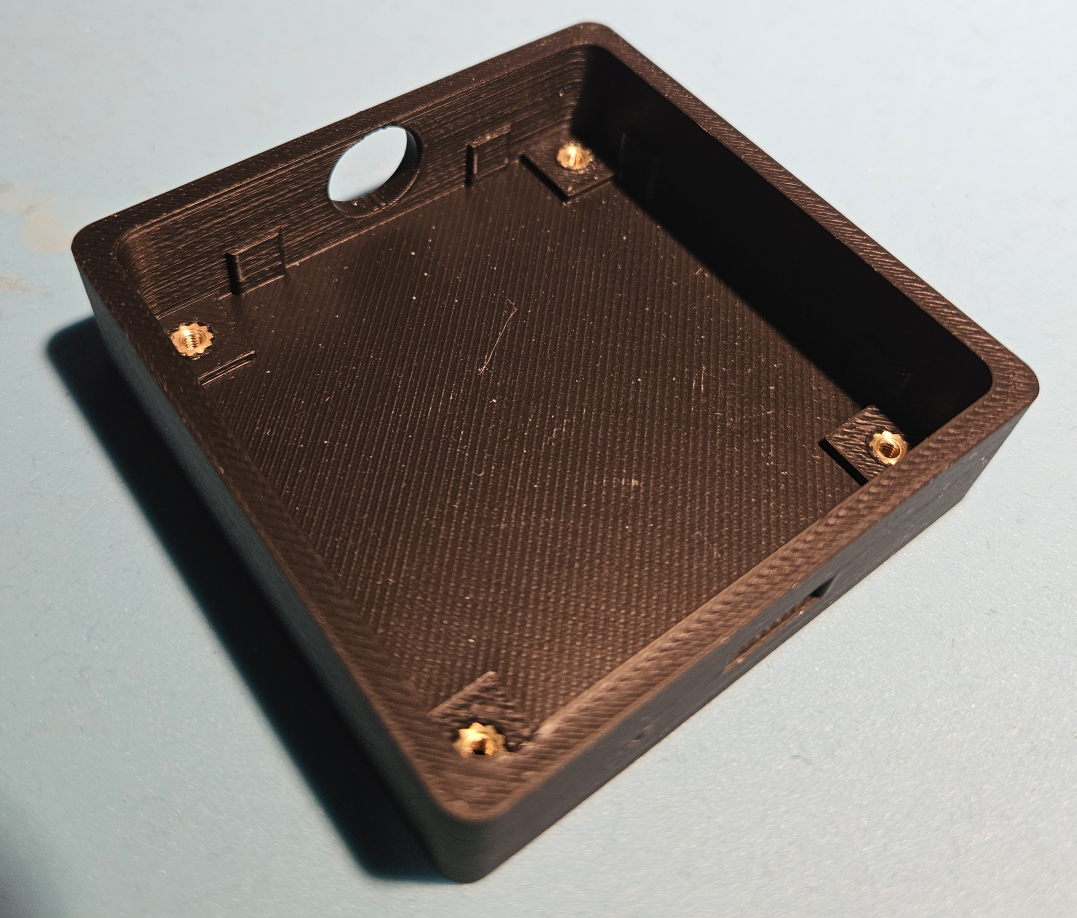

- 3 In the enclosure base, insert the threaded inserts with a soldering iron or heat tool
- 4 On the enclosure user button, snap-off the support pin and place the button from the inside of the enclosure base in the button hole, and with the snapped-off side facing down
- 5 Place the assembled PCBs together in the enclosure base, and use screws to attach the PCBs to the base
- 6 Power-up the device by inserting a USB-C cable on the back side of the enclosure base, from a computer
- 7 Connect a debug probe (e.g. ST-Link) to SWD connector, flash the bootloader firmware onto the device, and disconnect the debug probe
- 8 Snap-on the diffuser top to the enclosure base
- 9 With the USB-C cable connected to a computer, flash application firmware over USB w/ USB DFU (integrated in bootloader)
For more details about flashing the firmware, visit the firmware repository.

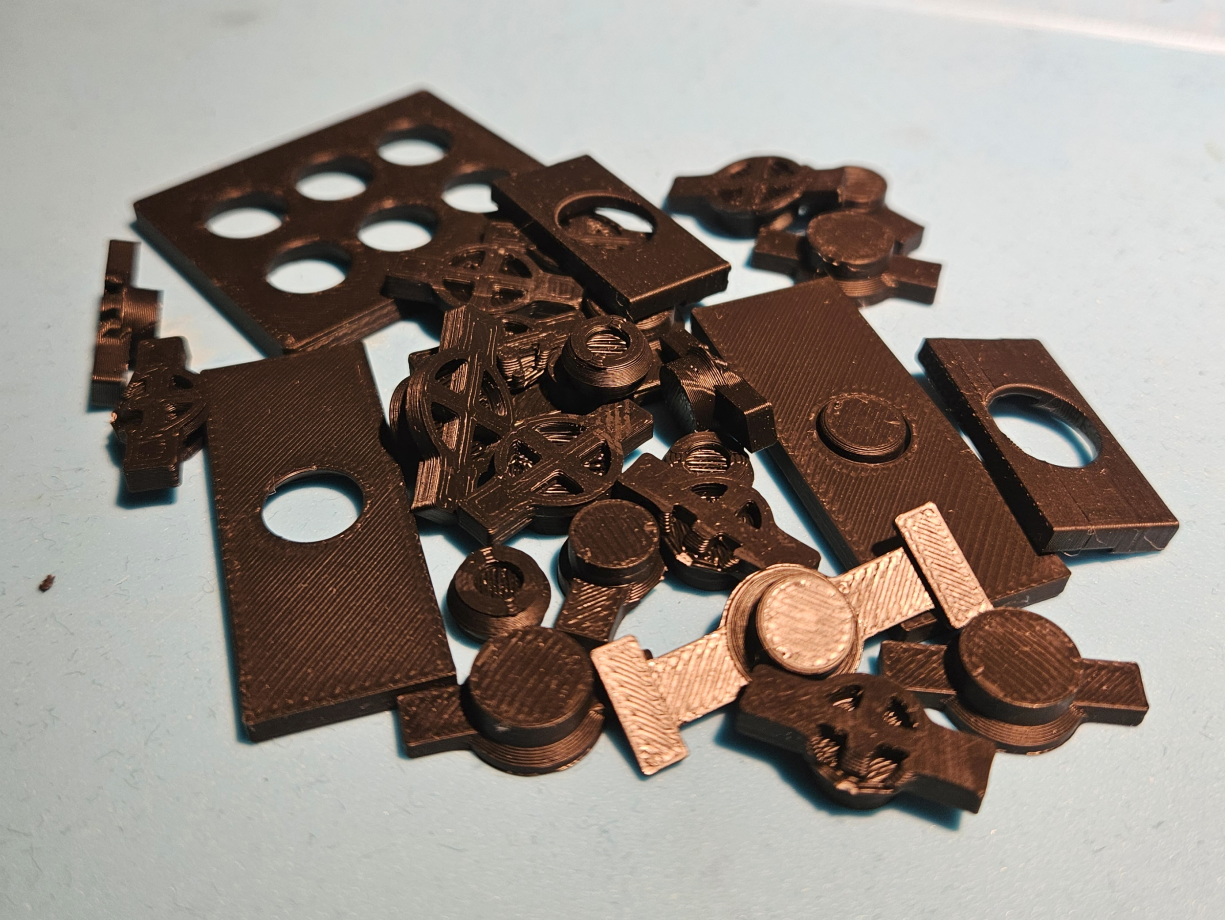

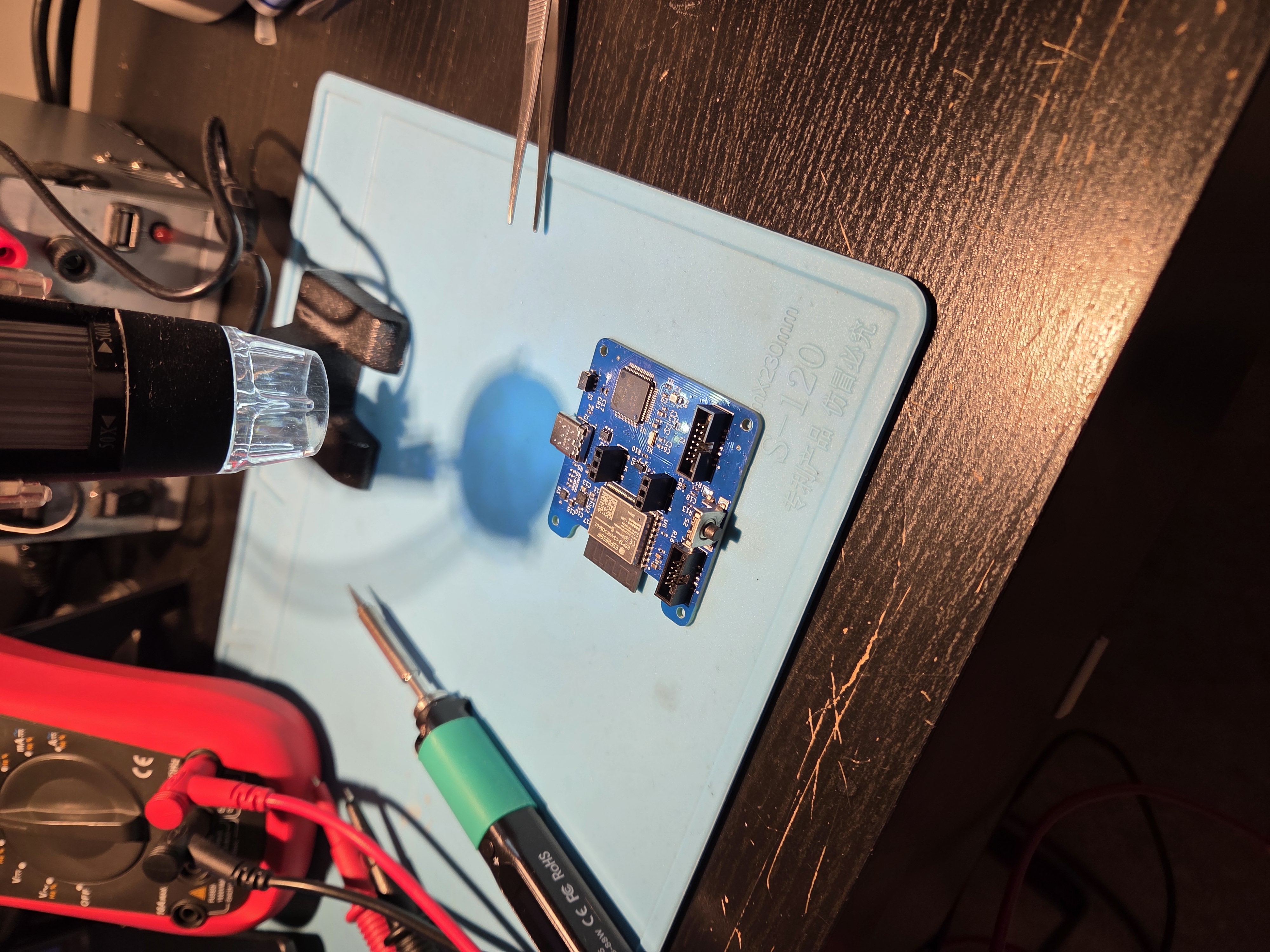

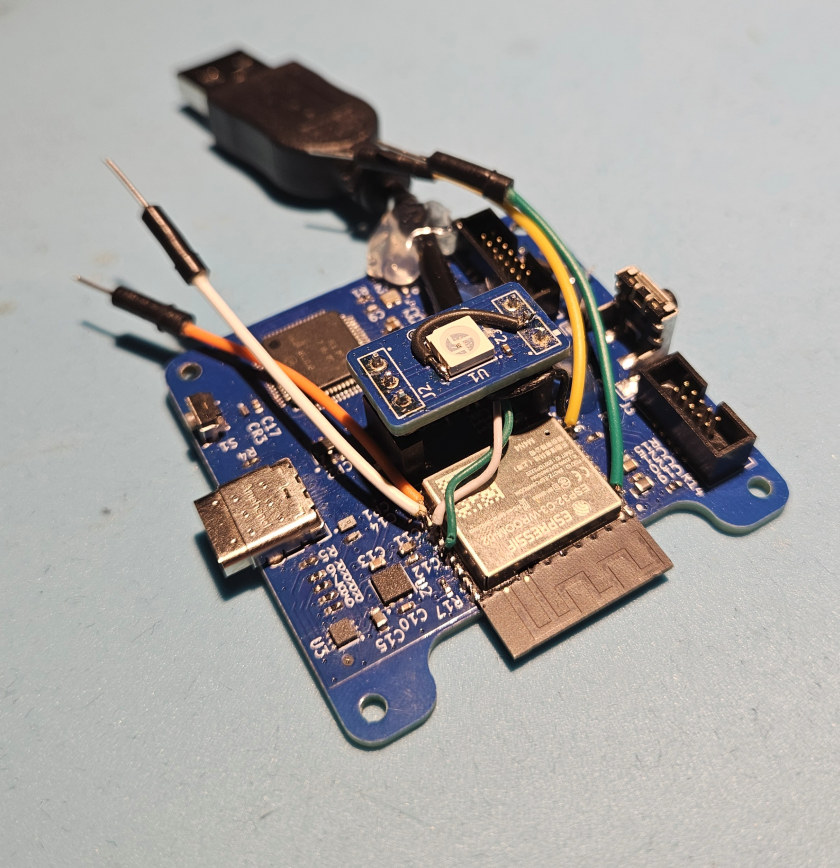

Photo Gallery
Pictures from development and production
The Road Ahead
Future plans and expansion for the project

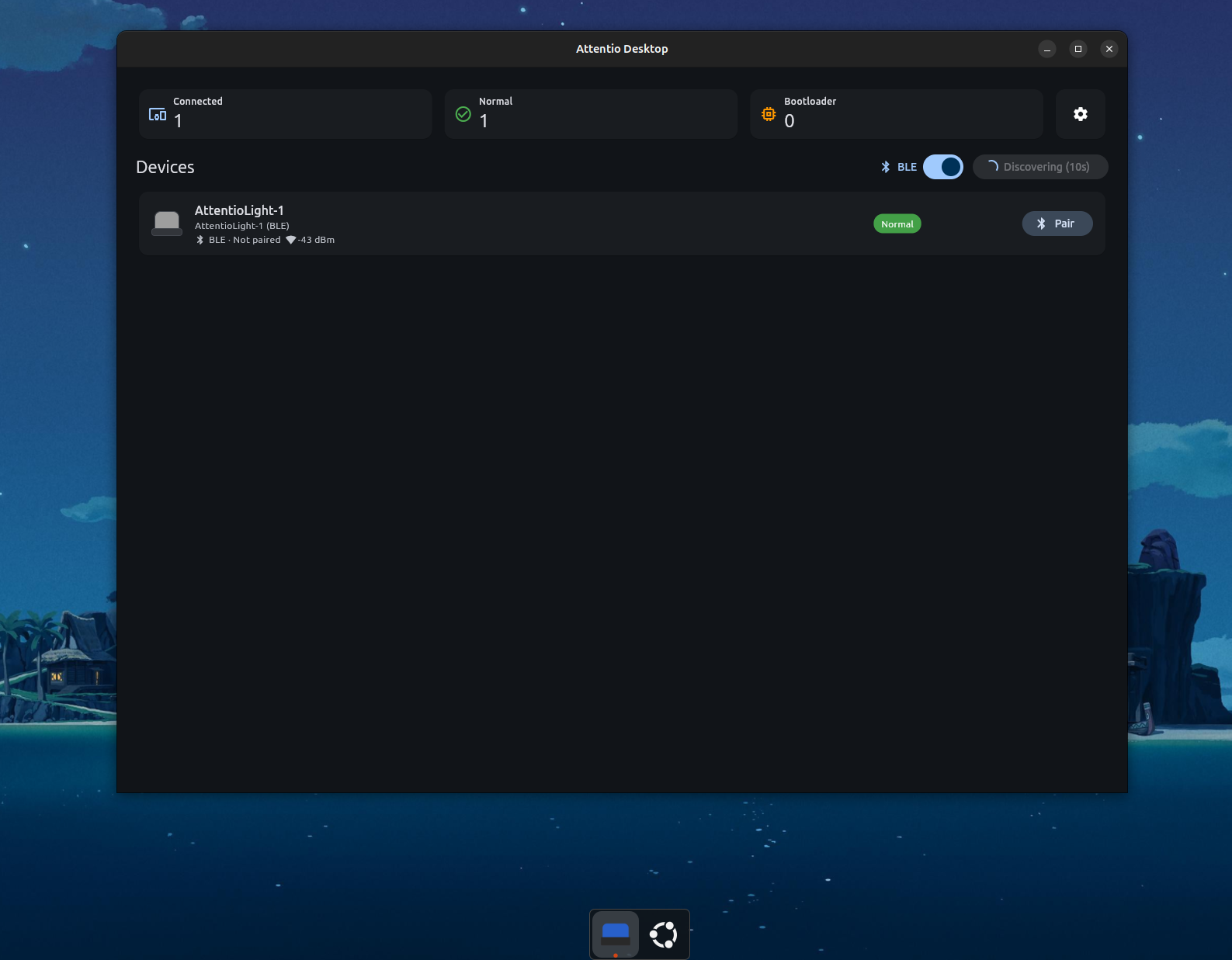

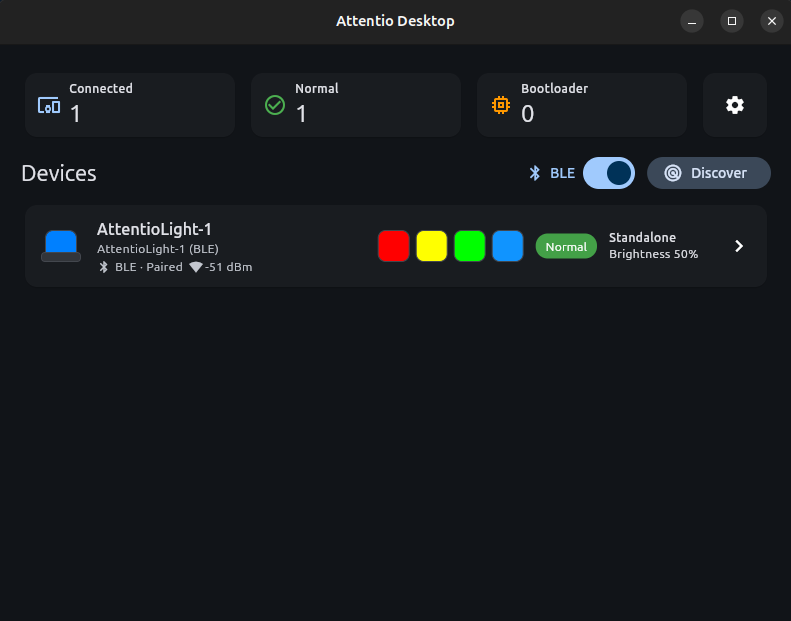

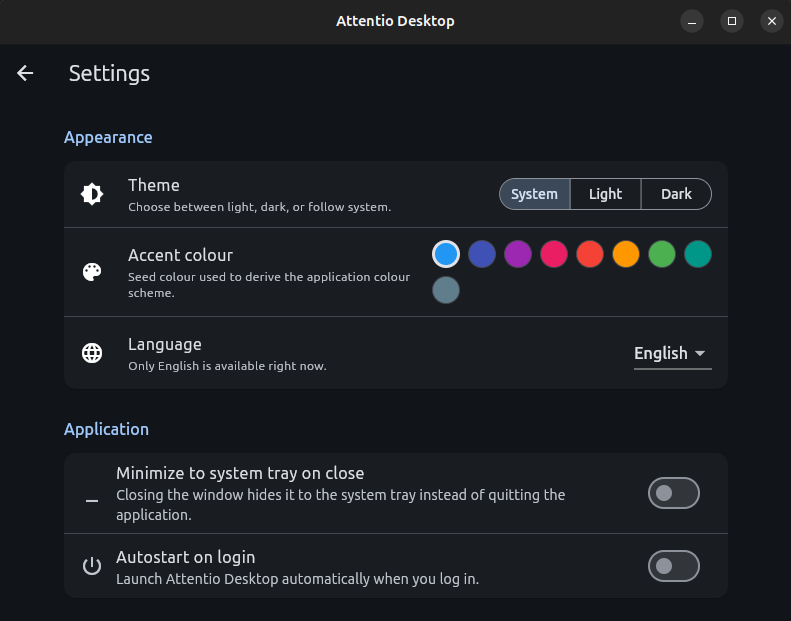

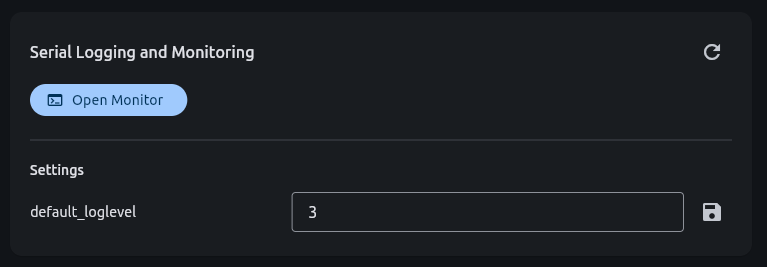

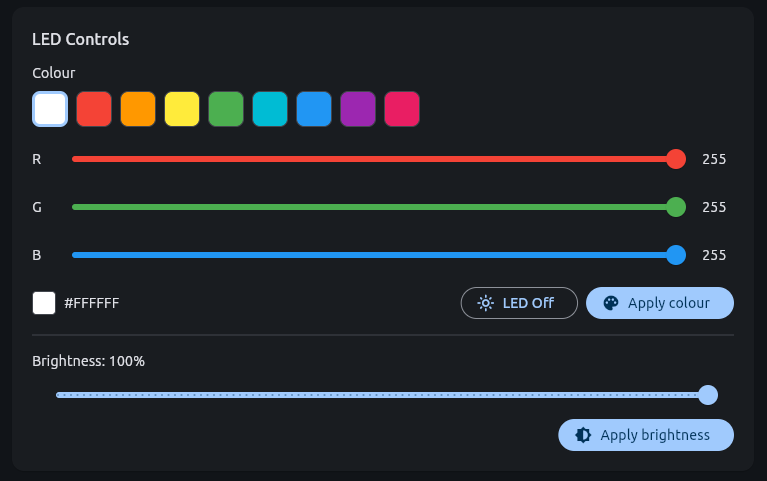

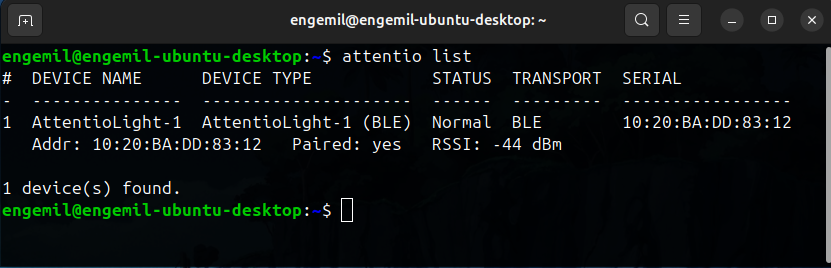

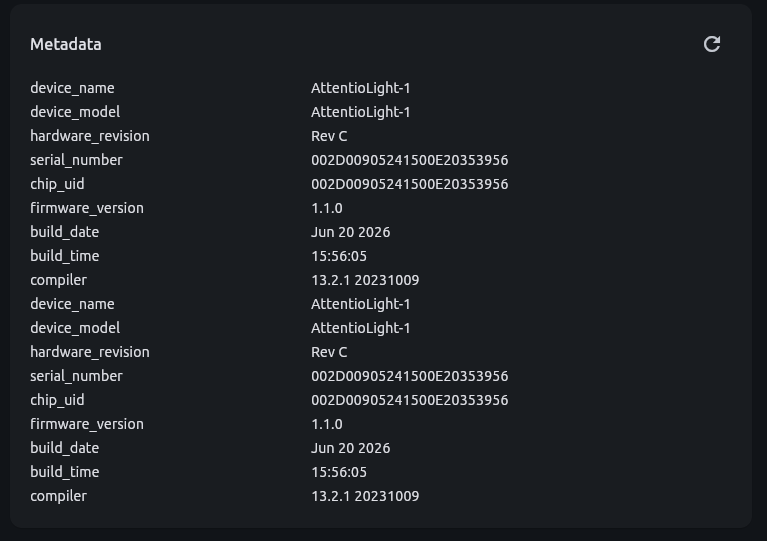

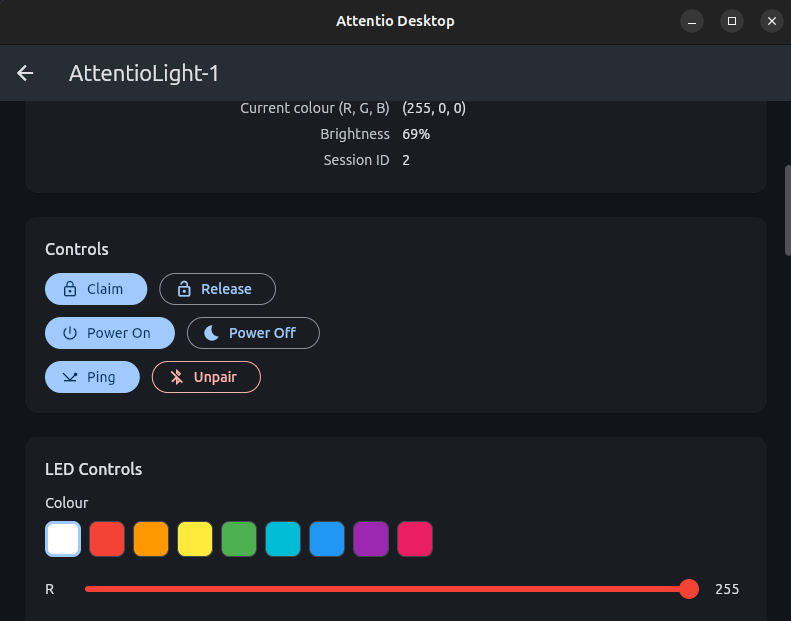

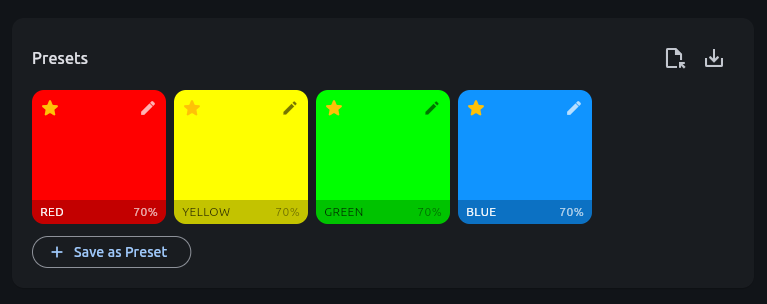

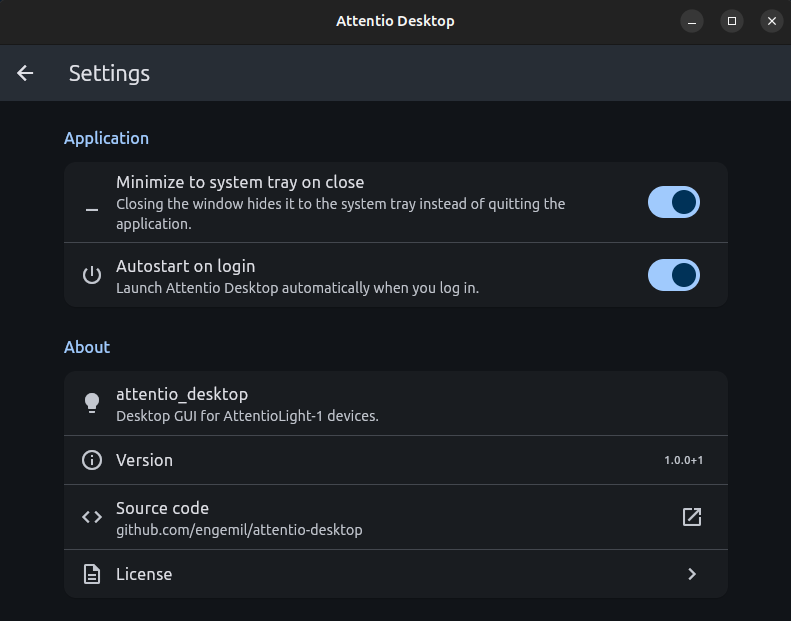

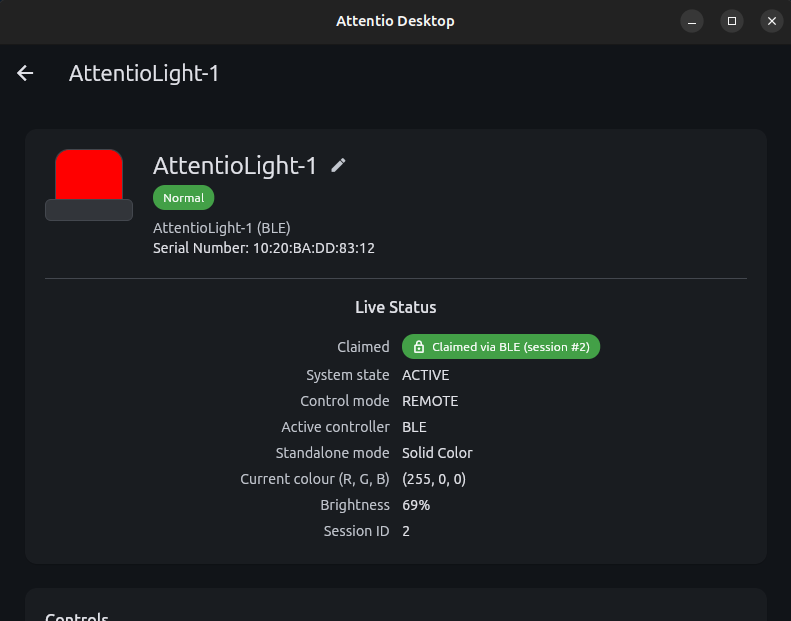

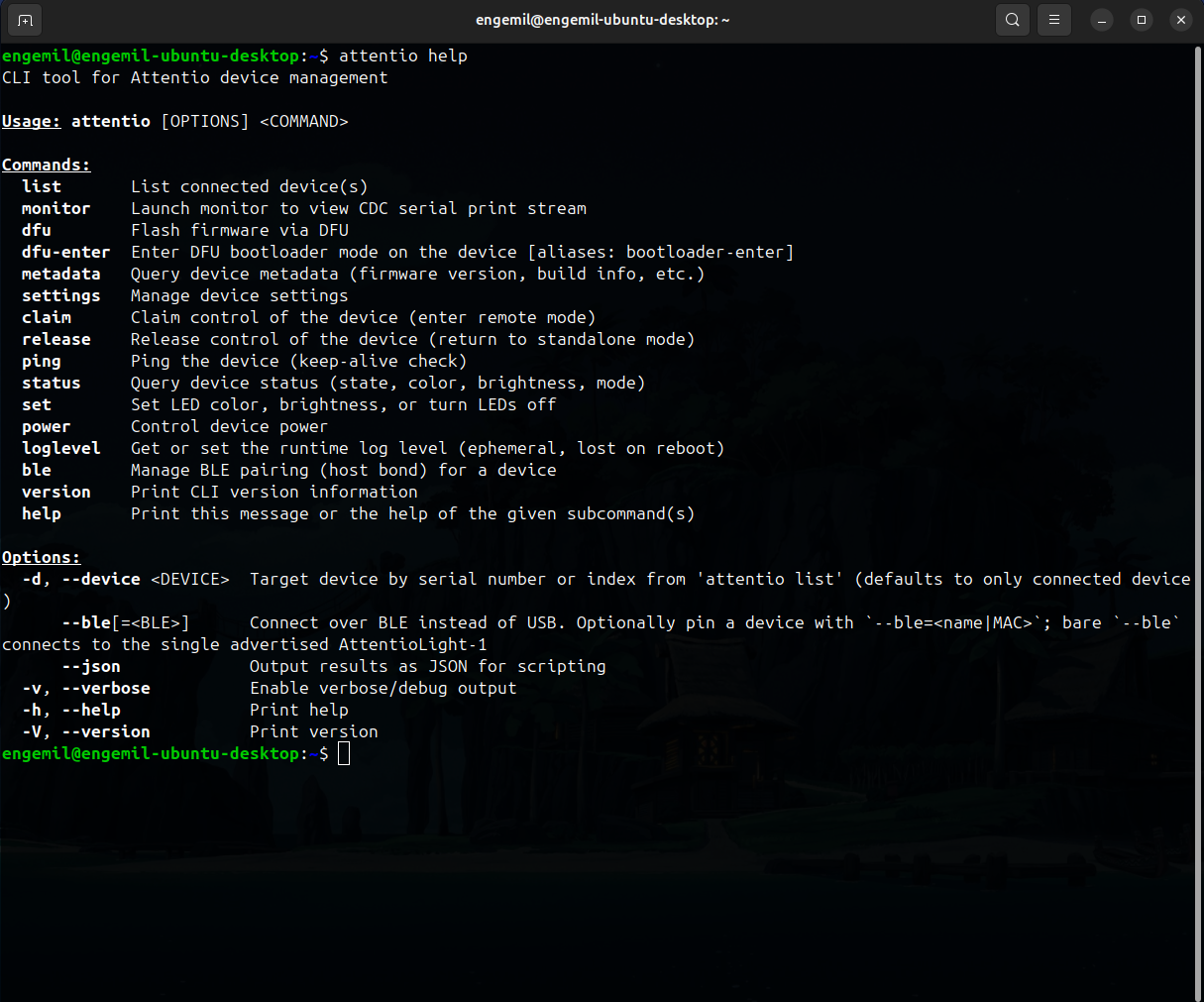

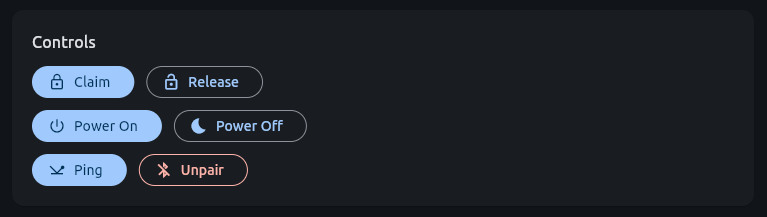

AttentioLight is just the beginning. Future development plans include a CLI tool for advanced configuration and diagnostics, a dedicated Linux application for seamless desktop integration, and an Android application for mobile control. Wireless connectivity through WiFi and Bluetooth Low Energy (BLE) is on the roadmap, along with server integration for centralized management. Additionally, a web UI and server development will enable browser-based control and monitoring, making a more versatile and accessible ecosystem across platforms.
